Column chromatography

Lore & Background

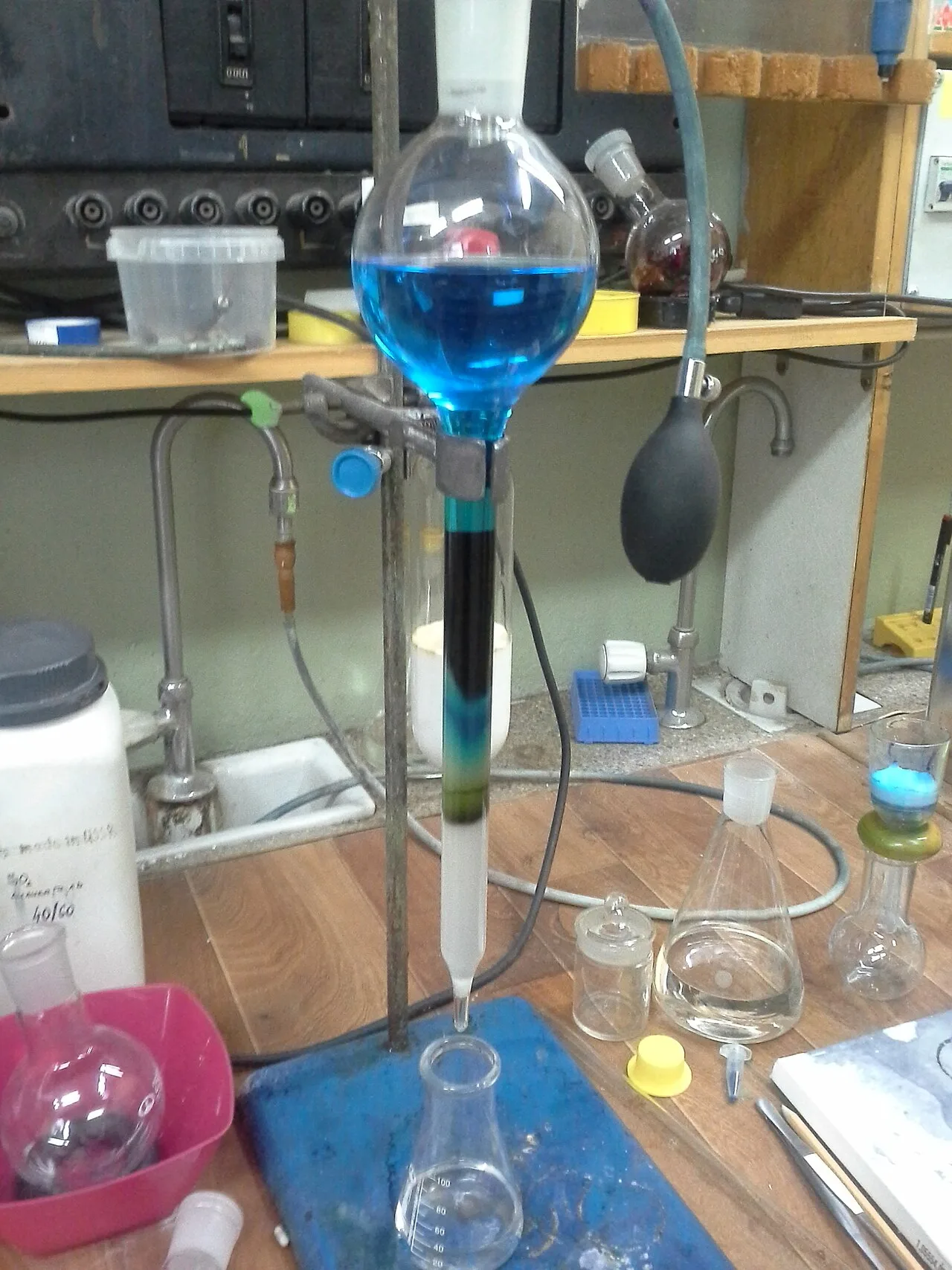

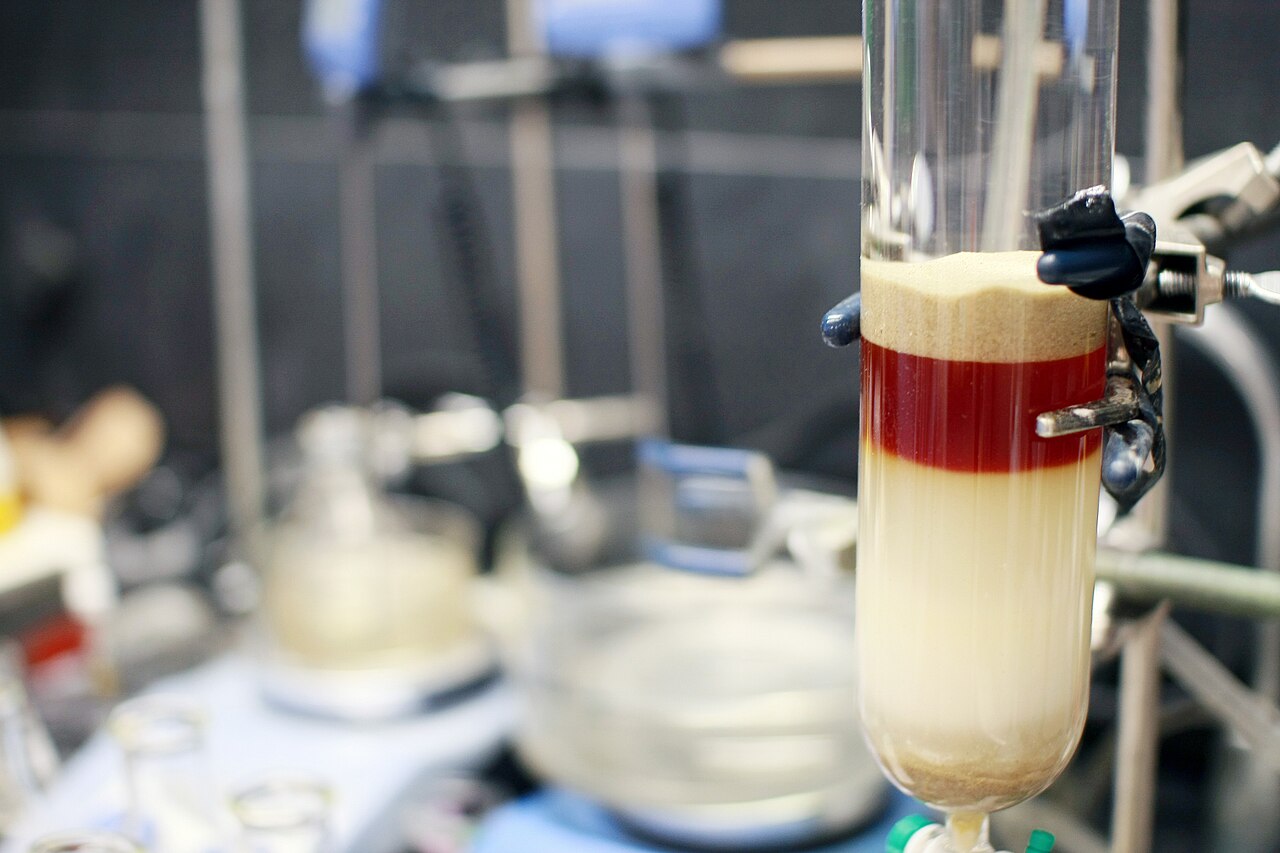

Column chromatography is performed by packing a solid adsorbent into a cylindrical glass or plastic tube, with a filter at the base to hold the solid phase in place. The column can be prepared using either the dry method (filling with dry stationary phase powder then adding mobile phase) or the wet method (pouring a slurry of eluent and stationary phase powder into the column). The top of the stationary phase should be flat, and a layer of sand may protect it. Eluent is passed through the column, and the individual components separate as they run at different speeds, eluting one at a time. The eluent is collected in fractions, which can be collected automatically by fraction collectors. Productivity can be increased by running several columns simultaneously using multi-stream collectors. The composition of the eluent flow can be monitored, and fractions analyzed by methods such as analytical chromatography, UV absorption spectra, or fluorescence. Colored or fluorescent compounds can be seen as moving bands through the glass wall.

Reader's Guide

Column chromatography is significant for its low cost and versatility, allowing separation of mixtures on scales from micrograms to kilograms. Its main advantage is that the stationary phase can be replaced after use, preventing cross-contamination and degradation. The technique is widely applicable because many different adsorbents (normal phase, reversed phase, or otherwise) can be used with a wide range of solvents. Before performing column chromatography, thin-layer chromatography is usually done on a small sample to optimize the combination of mobile and stationary phases. The retention factor of the target compound should be around 0.2–0.3 to minimize time and eluent usage. The eluent flow rate can be optimized: higher flow rates decrease diffusion and improve resolving power, but too high a rate prevents equilibration. Flow rate can be increased by raising the eluent column height, using a pump, or compressed gas (flash column chromatography). Automated low pressure liquid chromatography systems reduce human involvement and can separate samples from milligrams to industrial kilogram scales, though resolution is lower than high pressure systems due to larger packing material (around 50 micrometers).

Did You Know?

• For silica column chromatography, 20 to 100 grams of stationary phase are used per gram of dry mass of the analyte mixture.
• The mobile phase can be moved by gravity, compressed gas, or pressurized pumps, as in high-performance liquid chromatography.
• Common mobile phase solvents, in order of increasing polarity, include hexane, dichloromethane, ethyl acetate, acetone, and methanol.

Origins in Agriculture and Wartime Necessity

The story of ion chromatography begins not in a laboratory but in the fields of English agriculture. T. Way investigated how water-soluble fertilizer salts—specifically ammonium sulfate and potassium chloride—interacted with clay soils. Their experiments revealed that treating clays with these salts could extract ammonia and release calcium, a discovery that laid the groundwork for what would become a cornerstone analytical technique. The method's trajectory accelerated dramatically during World War II, when the Manhattan Project drove significant expansion of ion-exchange applications. By the late 1940s, Spedding and Powell were applying displacement ion-exchange chromatography to separate rare-earth elements and even distinguish between nitrogen-14 and nitrogen-15 isotopes in ammonia. In the early 1950s, Kraus and Nelson extended the approach to metal ions by separating their chloride, fluoride, nitrate, and sulfate complexes through anion chromatography. What began as an agricultural curiosity had, within a single generation, become an indispensable tool across chemistry, with its principles finding application in distillation, adsorption, and filtration.

The Logic of Charge: Anion and Cation Exchange

At its core, ion chromatography exploits a single electrostatic principle: oppositely charged species attract. The technique splits into two complementary modes. In cation-exchange chromatography, the stationary phase carries a negative charge, and the analyte molecules of interest are positively charged. This positive charge is achieved by running the separation at a pH below the molecule's isoelectric point. Conversely, anion-exchange chromatography employs a positively charged stationary phase to capture negatively charged analytes, which requires operating at a pH above the isoelectric point. For proteins specifically, the separation must occur at least one pH unit away from the isoelectric point to ensure adequate charge. The stationary phase contains an ionizable functional group that forms ionic bonds with the target molecules as they pass through the column. Once bound, the analytes are released—eluted—either by flushing the column with a higher concentration of competing ions or by shifting the pH. This straightforward charge-based mechanism allows the method to handle an extraordinarily wide range of molecules, from small inorganic anions and nucleotides to large proteins and amino acids.

The Detection Revolution and a Market in Competition

For decades, ion chromatography lacked a sensitive, automated way to detect eluted species. That changed in the late 1960s and early 1970s when Small, Stevens, and Bauman at Dow Chemical Company introduced a system of suppressed conductivity detection, enabling efficient separation of both anions and cations. The breakthrough sparked rapid adoption. The result was a fierce rivalry within the ion chromatography market between proponents of suppressed and non-suppressed detection. Rather than stifling progress, this competition accelerated the development of new column formats, elution strategies, and detector designs.

Strengths, Constraints, and the Road Ahead

One of ion chromatography's most celebrated strengths is the simplicity of its interaction: only a single ionic force governs the separation, unlike many other techniques that rely on multiple simultaneous mechanisms. This singular focus translates into higher matrix tolerance, meaning the method can handle complex sample backgrounds more gracefully. Elution patterns are also remarkably predictable because they depend on the presence and nature of the ionizable group, and a local charge balance is always maintained throughout the process. The technique finds routine use in protein purification, water analysis, quality control, semiconductor manufacturing, and environmental monitoring of aqueous systems. Yet limitations persist. The method is inherently restricted to molecules that possess an ionizable group, which excludes a significant portion of chemical space. Column-to-column inconsistency remains a practical headache, partly because the technique is still evolving. Looking forward, researchers identify the preparation of highly efficient monolithic ion-exchange columns as a critical challenge whose resolution would mark a major leap in the field's capabilities.
